Seamless Cold Drawn Hydraulic Cylinder Steel Tubes

Product Categories
Torich International Limited
Contact Now

Seamless Cold Drawn Hydraulic Cylinder Steel Tubes

Place of Origin : China

Brand Name : Torich

Certification : IS09001 ISO14001 TS16949

Model Number : EN10305-1

MOQ : 5tons

Price : 1200 USD/TONS

Packaging Details : In bundles

Delivery Time : 30-60DAYS

Payment Terms : T/T L/C

Supply Ability : 50000 TONS PER YEAR

Length : max12000mm

O.D : 6-350mm

W.T : 1-35mm

Contact Now

Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes
Steel tubes for precision applications.

Technical delivery conditions.



Size range: O.D.:6-350mm     W.T.:1-35mm      L:max12000mm

Heat Treatment:  +C,  +LC,  +N, +SR

Applications: Telescopic Cylinders/Hydraulic Cylinders/Auto shock absorber innder cylinder



Steel Grade C Si Mn P S Al
Steel name Steel number max max max max max min
E215 1.0212  0.10  0.05 0.70  0.025 0.025 0.025
E235 1.0308  0.17 0.35 1.20  0.025 0.025 -
E355 1.0580  0.22 0.55 1.60  0.025 0.025 -

Note: Special steel grade is also available, according to customer request.

  Mechanical properties at room temperature
Steel grade Minimum values for the delivery condition
Steel name steel nubmer (+Cc) (+LCc) (+SR) (+Ad) (+N)  NBK
Rm Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A %
E215 1.0212  430 8 380 12 380 280 16 280 30 290-430 215 30
E235 1.0308  480 6 420 10 420 350 16 315 25 340-480 235 25
E355 1.0580  640 4 580 7 580 450f 10 450 22 490-630 355 22



1.--Delivery: 60-70 days after receiving 30% T/T in advance

2.--Payment terms: 30% T/T in advance, the balance 70% paid before shipment.

3.--Packaging: antirust protection, In hexagon bundles

4.--Marks on pipes(tubes): Standard,Steel Grade, Size, Heat No.( or at the buyer's option).

5.--Mill Test Certificate:EN10204 3.1



Seamless Cold Drawn Hydraulic Cylinder Steel Tubes




Buy cheap Seamless Cold Drawn Hydraulic Cylinder Steel Tubes product

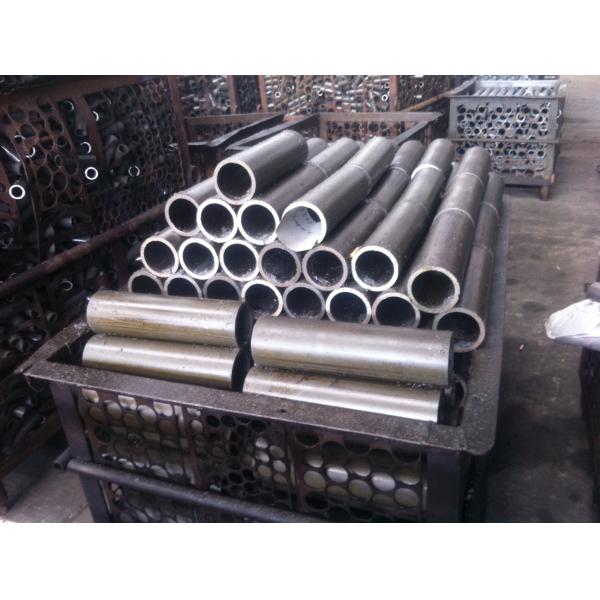

Seamless Cold Drawn Hydraulic Cylinder Steel Tubes Images
