Precision Steel Tubes High Strength EN10305-1 EN10305-4 Seamless For Oil / Gas Drilling

Product Categories
Torich International Limited
Contact Now

Precision Steel Tubes High Strength EN10305-1 EN10305-4 Seamless For Oil / Gas Drilling

Brand Name : Torich

Model Number : EN10305-1

Certification : IS09001 ISO14001 TS16949,GL

Place of Origin : China

MOQ : 5tons

Price : Negotiation

Payment Terms : T/T L/C

Supply Ability : 50000 TONS PER YEAR

Delivery Time : 30-60DAYS

Packaging Details : In bundles

Applications : Telescopic Cylinders/Hydraulic Cylinders/Auto shock absorber innder cylinder

Contact Now

Precision Steel Tubes High Strength EN10305-1 EN10305-4 Seamless For Oil / Gas Drilling



Steel Grade C Si Mn P S Al
Steel name Steel number max max max max max min
E215 1.0212  0.10  0.05 0.70  0.025 0.025 0.025
E235 1.0308  0.17 0.35 1.20  0.025 0.025 -
E355 1.0580  0.22 0.55 1.60  0.025 0.025 -



Note: Special steel grade is also available, according to customer request.





Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes

Steel tubes for precision applications. Technical delivery conditions.



Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm

Applications: Telescopic Cylinders/Hydraulic Cylinders/Auto shock absorber innder cylinder



 Mechanical properties at room temperature
Steel grade Minimum values for the delivery condition
Steel name steel nubmer (+Cc) (+LCc) (+SR) (+Ad) (+N)  NBK
Rm Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A %
E215 1.0212  430 8 380 12 380 280 16 280 30 290-430 215 30
E235 1.0308  480 6 420 10 420 350 16 315 25 340-480 235 25
E355 1.0580  640 4 580 7 580 450f 10 450 22 490-630 355 22
  1. Heat Treatment:  +C,  +LC,  +N, +SR
  2. Delivery: 60-70 days after receiving 30% T/T in advance
  3. Payment terms: 30% T/T in advance, the balance 70% paid before shipment.
  4. Packaging: antirust protection, In hexagon bundles
  5. Marks on pipes(tubes): Standard,Steel Grade, Size, Heat No.( or at the buyer's option).
  6. Mill Test Certificate:EN10204 3.1

Precision Steel Tubes High Strength EN10305-1 EN10305-4 Seamless For Oil / Gas Drilling





Precision Steel Tubes High Strength EN10305-1 EN10305-4 Seamless For Oil / Gas Drilling     Precision Steel Tubes High Strength EN10305-1 EN10305-4 Seamless For Oil / Gas Drilling




Buy cheap Precision Steel Tubes High Strength EN10305-1 EN10305-4 Seamless For Oil / Gas Drilling product

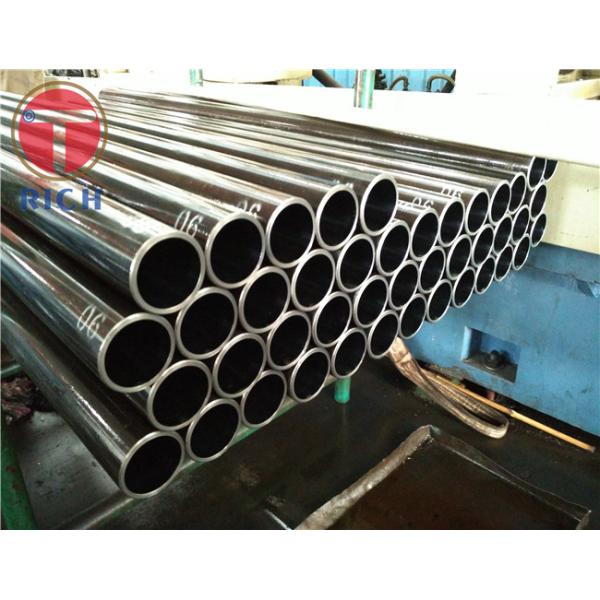

Precision Steel Tubes High Strength EN10305-1 EN10305-4 Seamless For Oil / Gas Drilling Images
